Tractor Land X NB2610KQ

Short Description:

The first model in the range is theB2610K which meets the demands of both small producers and hobby farmers.

Equipped with a 3 cylinder 1218 cc Stage V engine and EPA T4, which provides 26hp, the B2610K features a 26-litre fuel tank, delivering longer periods between needing to refill with fuel. This 4WD tractor is equipped with a mechanical, constant mesh transmission, consisting of 9 forward gears and 3 reverse gears, enabling enhanced precision and adaptation as demanded for each job. The ergonomic design of its controls allows users to change gear with ease.




Product Detail

Product Tags

Product Description

合并PDF_01In addition, the B2610K offers surprising performance generated by hydraulic power steering and a hydraulic pump of 25 l/min. These hydraulic power systems deliver higher levels of loader reactivity and increase rear lifting capacity to 750kg. This is sold as standard with a hydraulic double acting valve and 2 PTO speeds: 540 and 980.
The flat platform and wide operator station provides a functional and well-designed layout, this allows for a more comfortable drive. The road lights are characterised by modern LED technology. Finally, the product comes with a toolbox for easy daily maintenance.
The B2610K is the only tractor within its market which offers both position & draft control. This last feature gives operators the ability to make pulling work easier without incurring any additional costs. With its excellent quality-price ratio, the purchase of this new tractor becomes possible for every budget.
This tractor is available with 3 tyre options, for different applications:
Agricultural tyres.
Turf tyres.
Industrial tyres.
This model has been designed with a customer-centered approach, and a high strength aluminum profile heater cabin is optional.

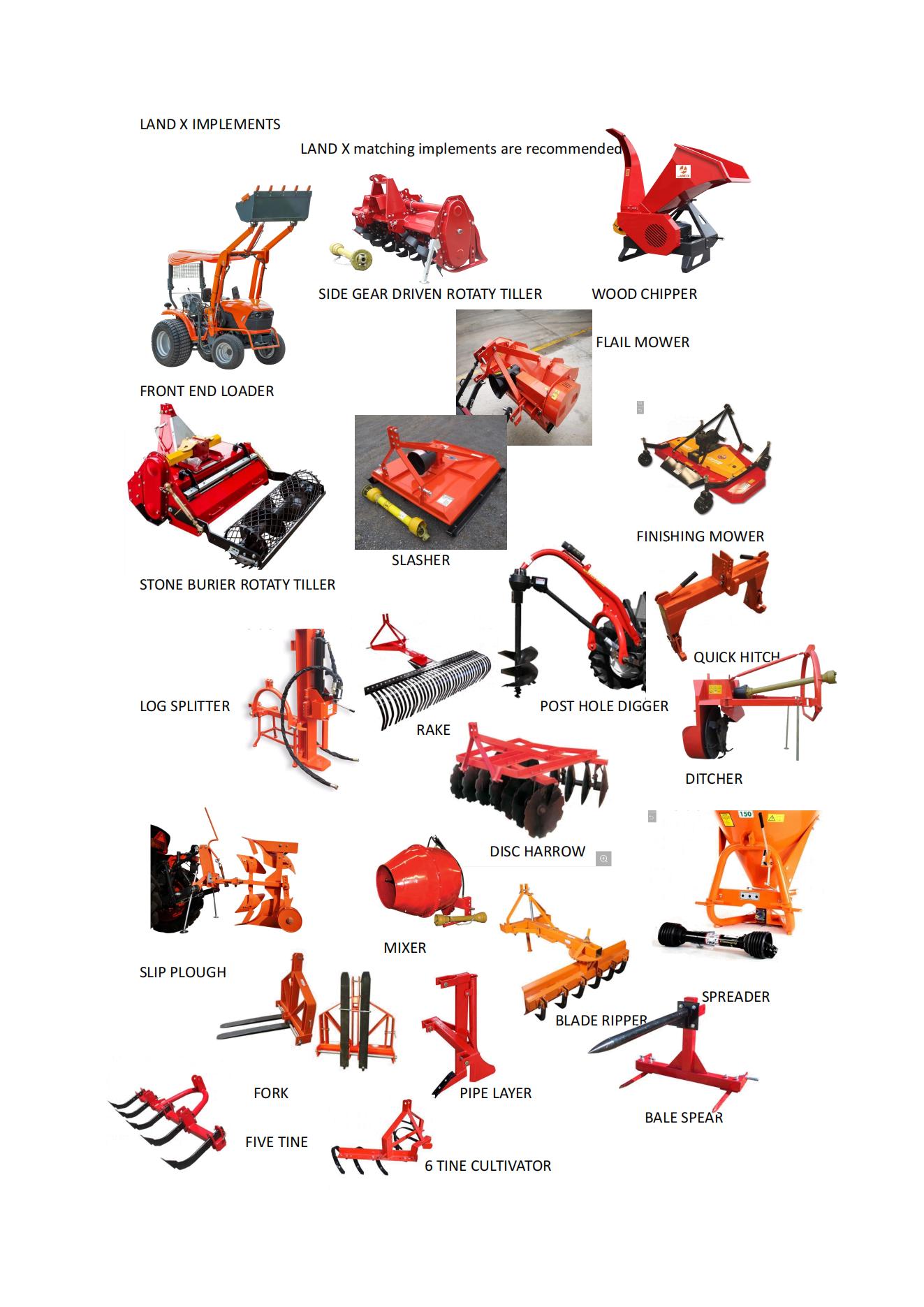

LAND X also offer original front end loader for this tractor.

合并PDF_02

Tractor Land-x
Tractor Land-x 1
Tractor Land-x 2
Tractor Land-x 43

More exterior displays

Front end loader2
Front end loader3
Front end loader4
Tractor Land4
Tractor Land3
Tractor Land2
Tractor Land1

Specification Table

Model

NB2610KQ
PTO power* kW ( HP) 14.8(20.1)
Engine Maker Changchai/ PERKINS
Model 3M78/403-J
Type Direct injection, electronic control, high pressure common rail, liquid cooled, 3 - cylinder diesel Euro 5 Emission/ EPA T4
Number of cylinders 3
Bore and stroke mm 78 x 86
Total displacement cm 1223
Engine gross power* kW ( HP) 19.2(26.0)
Rated revolution rpm 2800
Maximum torque N-m 70
Battery 12V/45AH
Capacities Fuel tank L 23
Engine crankcase (with filter) L 3.1
Engine coolant L 3.9
Transmission case L 12.5
Dimensions Overall length (without 3P) mm 2410
Overall width mm 1105, 1015
Overall height( Top of steering wheel) mm 1280/ 1970(WITH ROPS)
Wheel base mm 1563
Min. ground clearance mm 325
Tread Front mm 815
Rear mm 810, 900
Weight

kg

625
Clutch Dry single plate
Traveling system      Tires  Front 180 / 85D12
Rear 8.3-20
Steering Integral type power steering
Transmission Gear shift, 9 forward and 3 reverse
Brake Wet disk type
Min. turning radius (with brake)

m

2. 1
Hydraulic unit Hydraulic control system Position valve and draft lifter mix
Pump capacity L/min 3P:16.6
Power steering:9.8
Three point hitch IS Category 1, 1N

Max. lift force
At lift points kg 750
24 in. behind lift point
kg
480
PTO Rear- PTO SAE 1-3/8, 6 splines
PTO / Engine speed rpm 540 / 2504, 980 / 2510

Traveling Speeds

( At rated engine rpm)

Model NB2610
Tire size ( Rear)   8 .3-20 - Farm
    Range gear shift lever Main gear shift lever
Forward

1


Low
1 1
2 2 1.5
3 3 2.7
4   Middle 1 3.3
5 2 4 .8
6 3 8.6
7   High 1 7.2
8 2 10.3

9

3
18.7
Max. Speed (at 2750 engine rpm)
19.8
Reverse

1

Low R 1.4
2 Middle R 4 .4
3 High
R
9.6
Max. Speed (at 2750 engine rpm)
10.2
